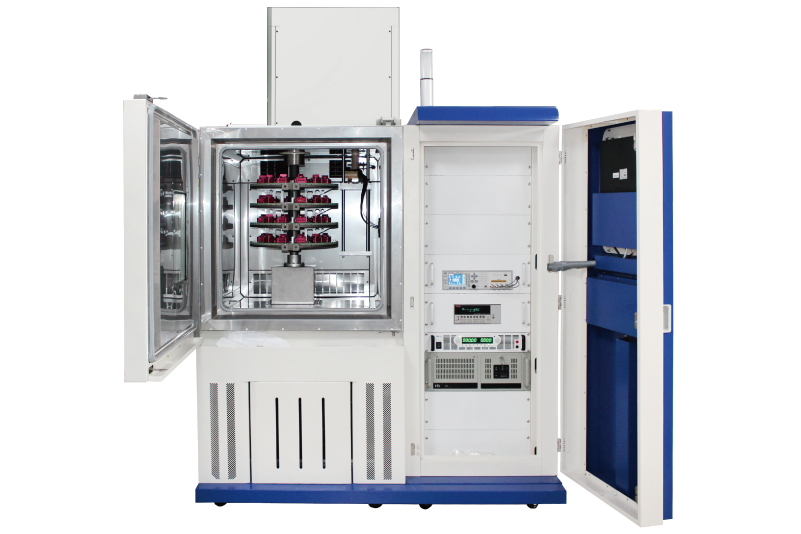

STS-750(Tantalum capacitor)
High&Low Temp. Auto Test for Tantalum Capacitor

The system can perform three-temperature(-50℃,20℃,150℃)auto test for various capacitors thru configuring different test instruments. The system is characterised by reliable test,accurate temp.(measurable)and high automation,which greatly enhanced the test accuracy and reduced human intervention during the test.




Product Parameters
Parameter
Capacity
≥288 DUTs( B case / C case / Axial )；288 DUTs( D,E case / V,Wcase )；Customization available
Length and mode of outgoing line
≤ 0.5m; Ultra-short line design, with Kelvin test, apply the same set of test lines to ensure the test accuracy
High&low temp.chamber
Axial flow fan with horizontal air supply makes more uniform temp. Dimension:60cm×60cm×60cm
Test temp.
-55℃~ 175℃
Temp. logging
Real-time monitoring of test temp. in the whole process, logging and describing in curve format makes scientific management
Capacitance value
0.00001pf ～ 999.999mf, Instrument accuracy: 0.1%; Equipment repeatability accuracy: 0.5%
Loss factor
